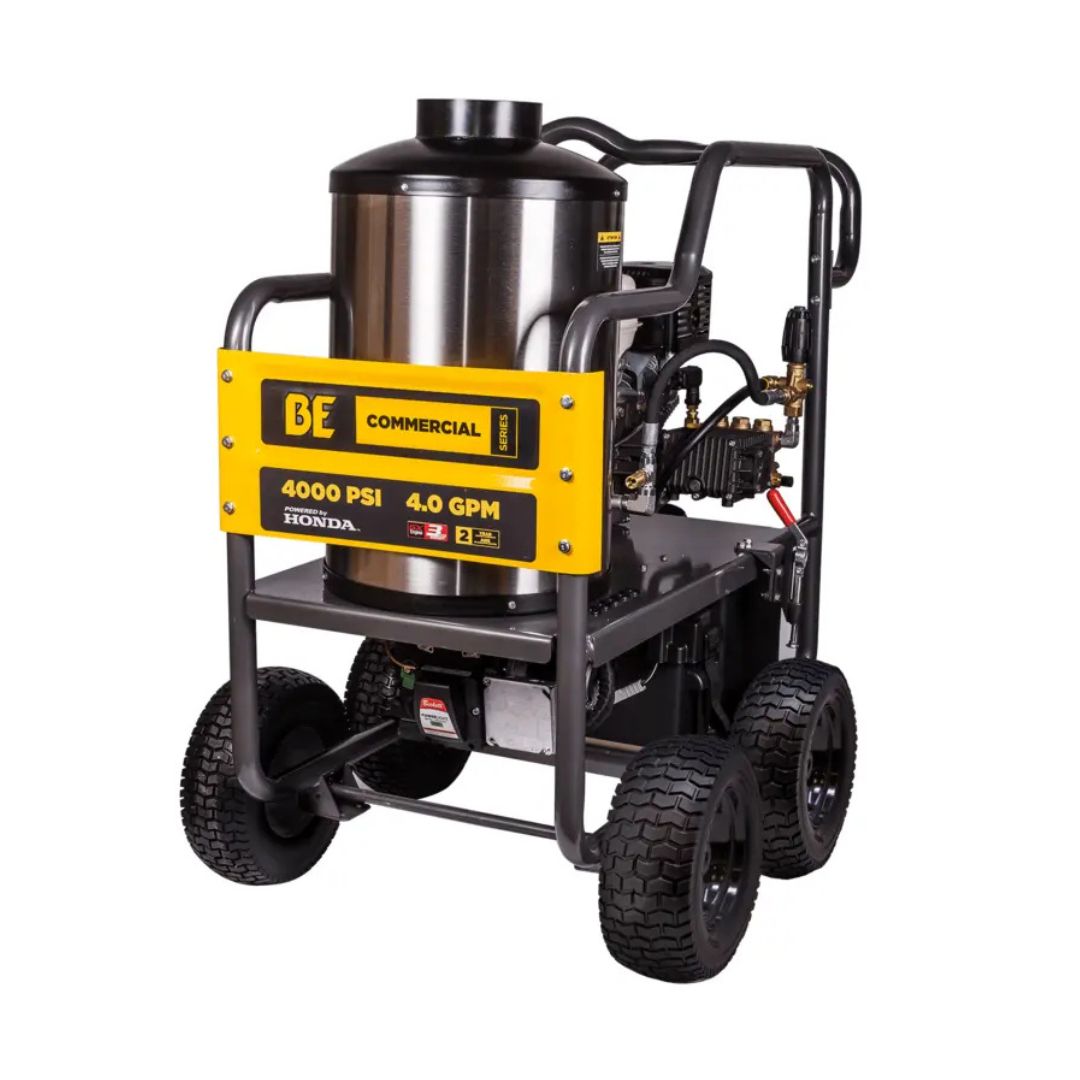

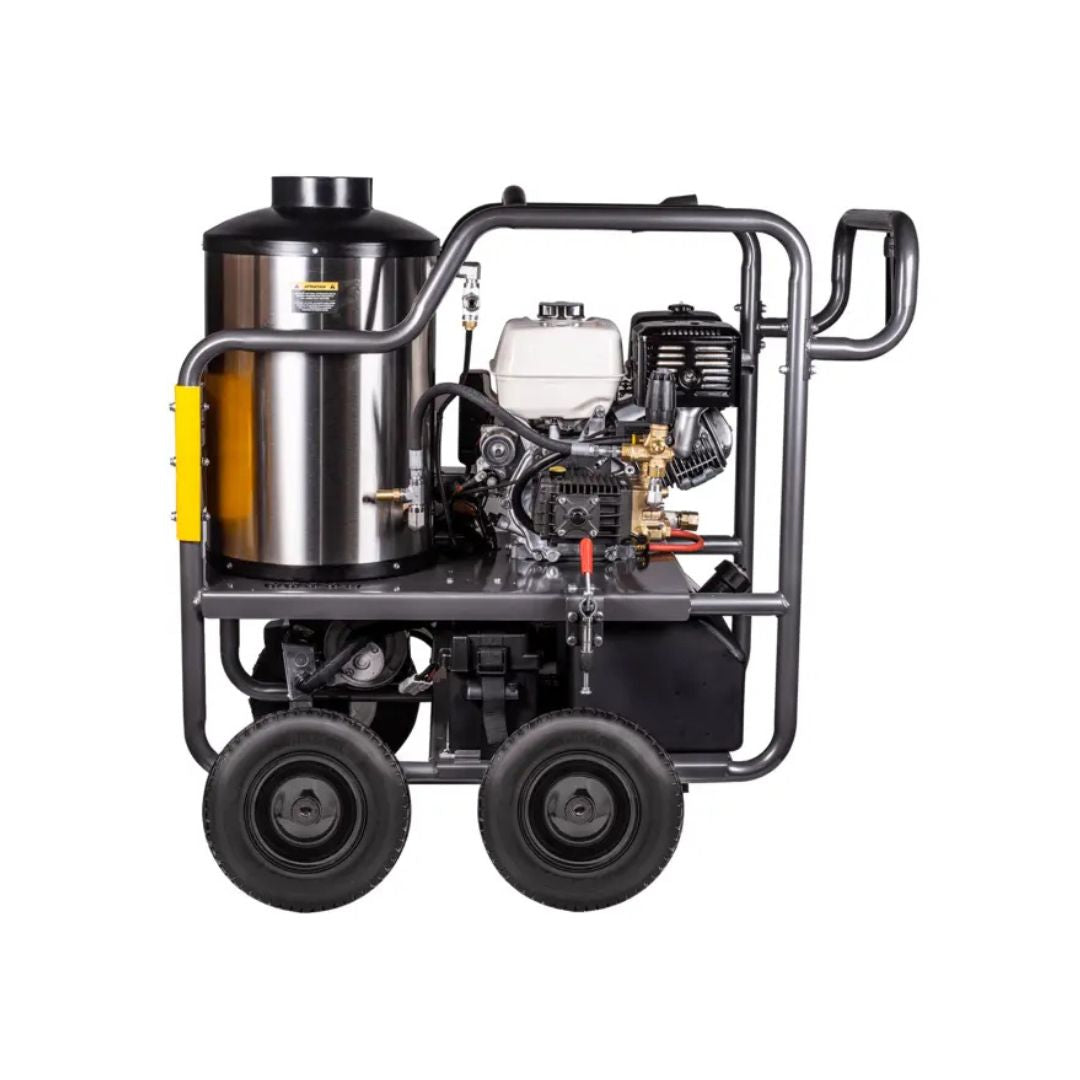

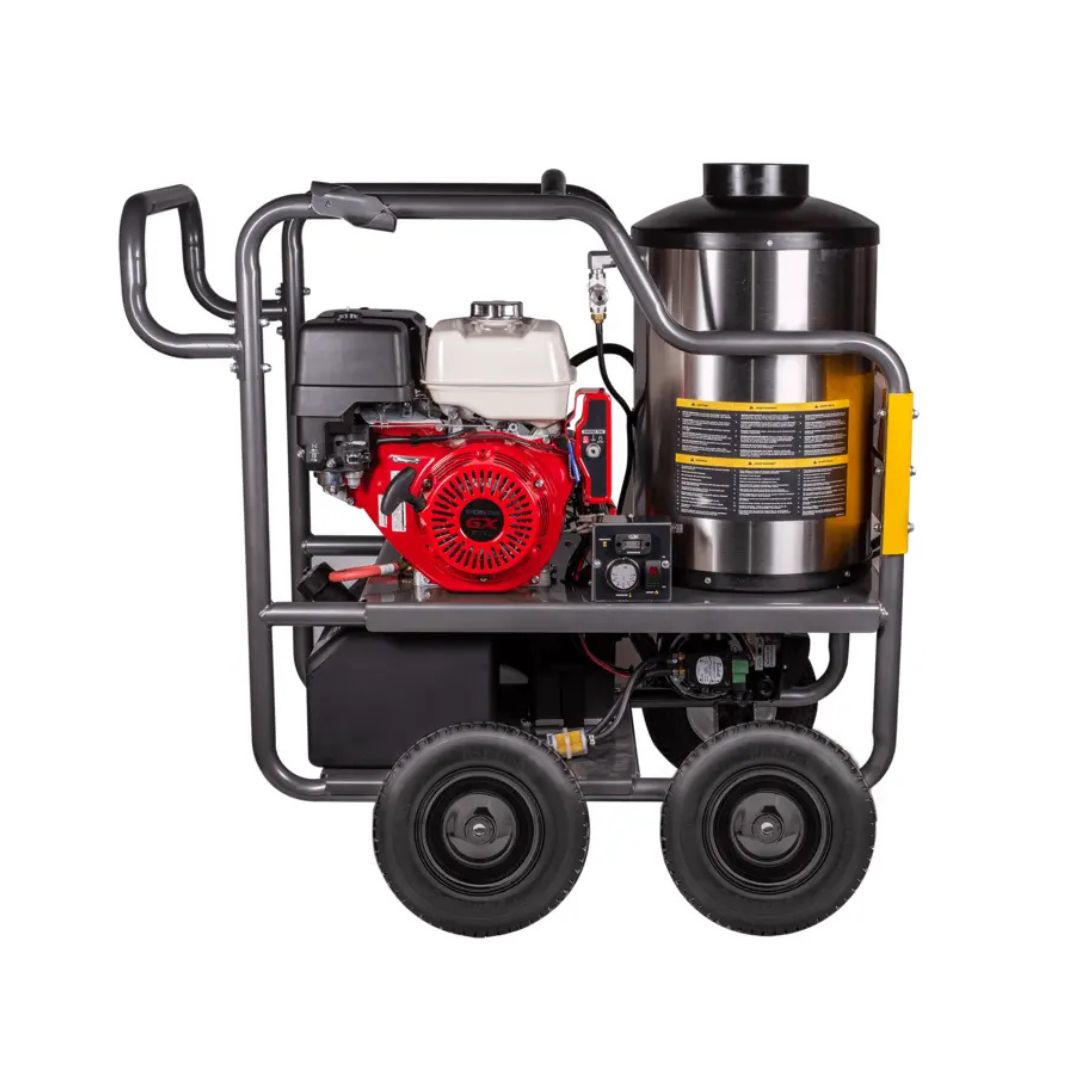

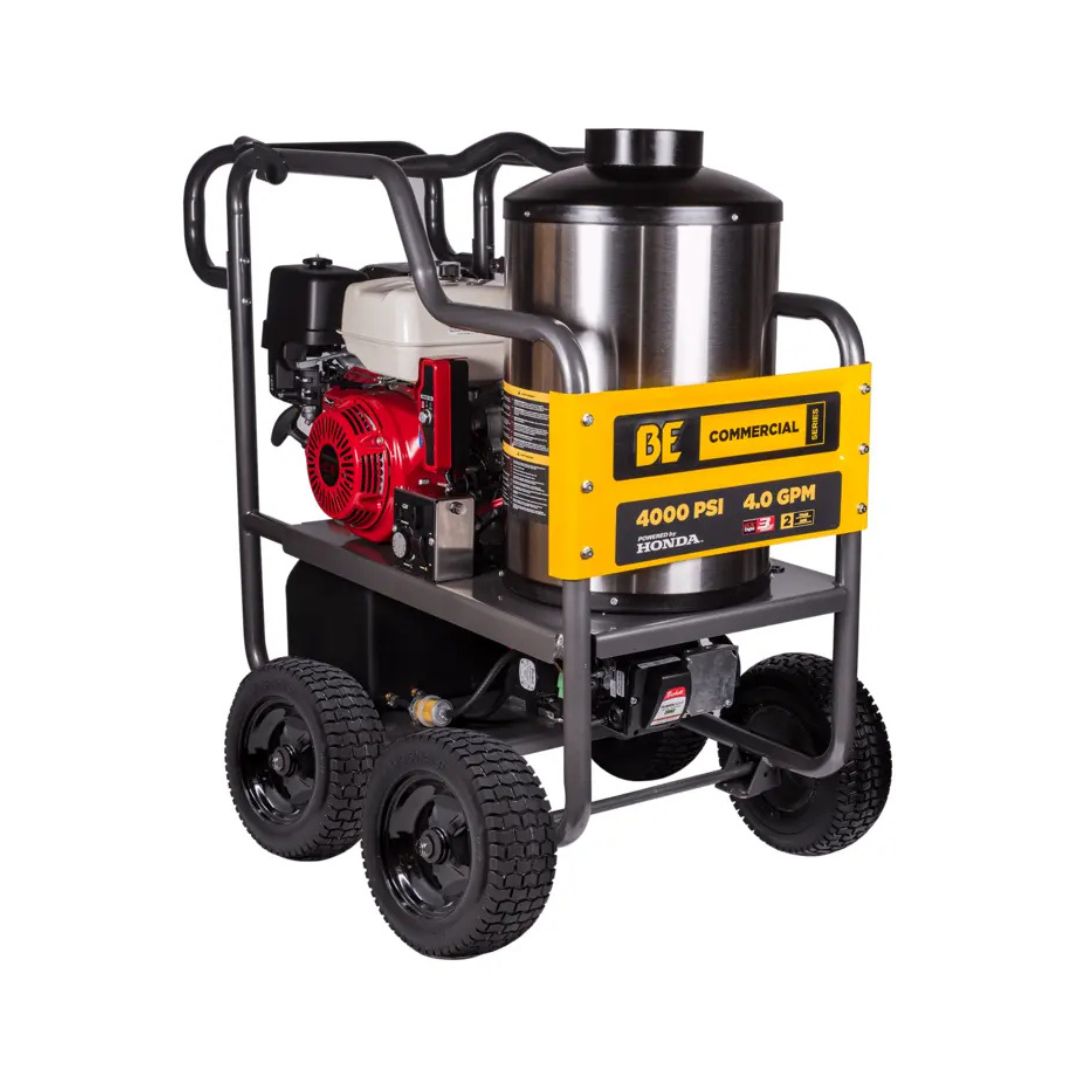

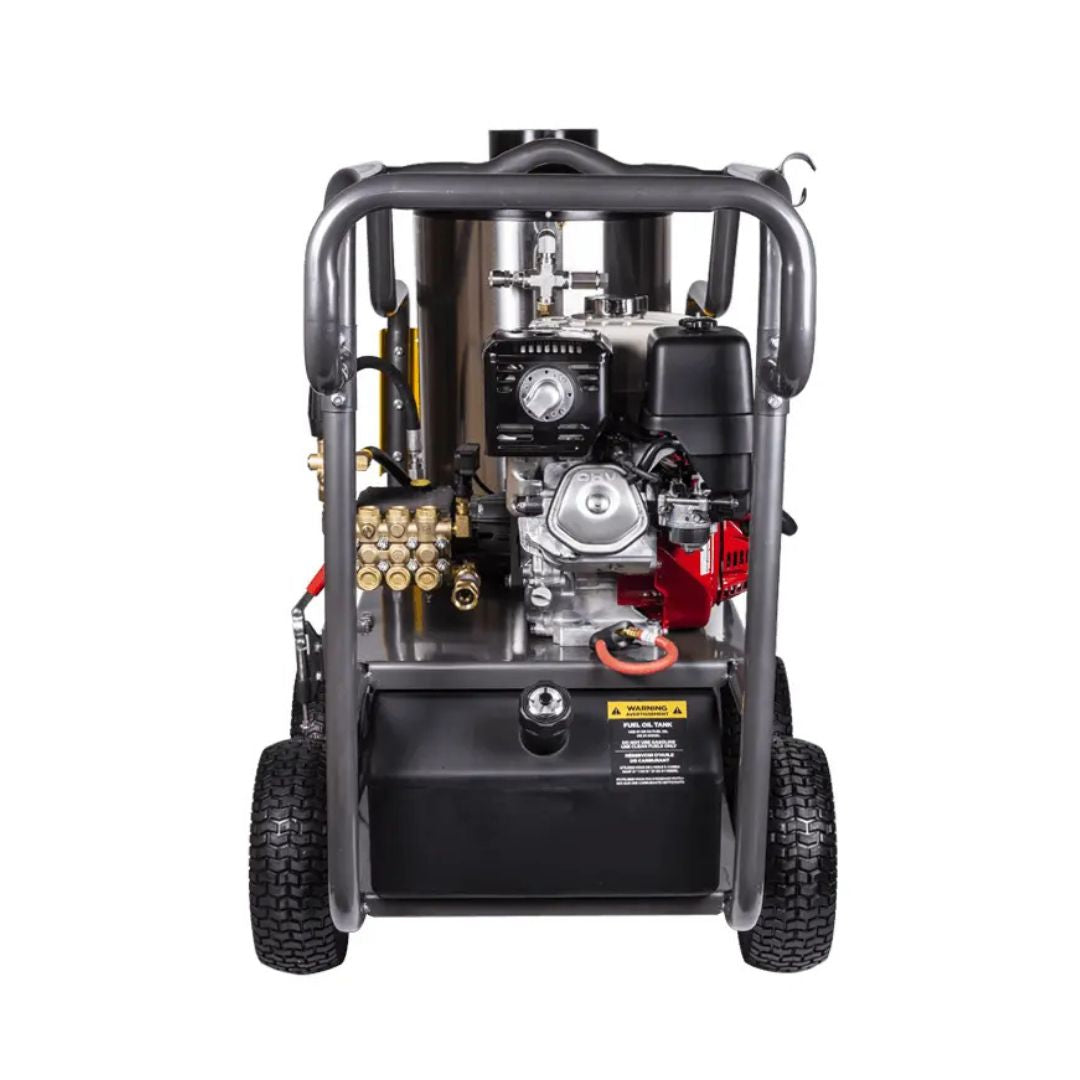

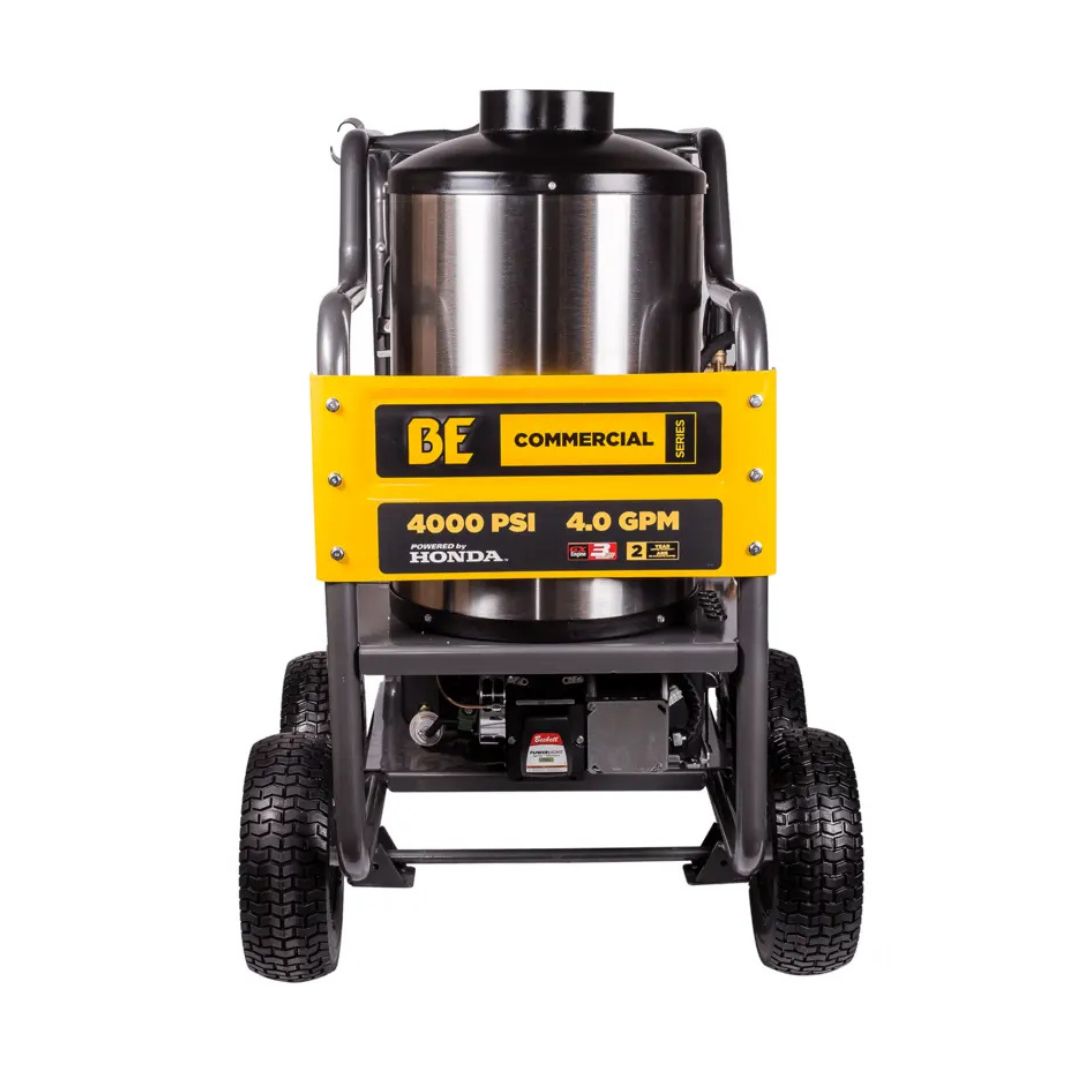

BE 4,000 PSI - 4.0 GPM Warrior Hot Water Pressure Washer with Honda GX390 Engine and General Triplex Pump - Commercial Series

Professional quality Honda GX390 engine with electric start drives the pump. A 55AH Marine battery is included.

Direct drive system connects the engine to the pump for a compact and efficient power transfer.

Commercial grade General triplex pump featuring die-cast body, forged brass manifold, one-piece plungers, thermal release valve and improved heat dissipation.

External unloader provides superior cooling and versatility to further enhance pump life.

Heating coil is ignited by a 12v Becker that is fueled with diesel.

The burner can be turned off and controlled with the adjustable thermostat that can be set up to 93°/200°F with an output of 330,000 BTU.

Commercial grade accessories included are a 50 foot high-pressure hose, spray gun wand assembly, and five spray nozzles.

Powder coated steel frame with four 13” flat free tires for stability and to handle rough terrain. Roll cage design protects the components while allowing easy access to use or maintain.

A lift point is built into the frame to allow the use of a crane to lift it onto a truck or trailer.

Frame includes mounting brackets for quick installation onto trucks or trailers by removing the wheels.

The actual product may vary from the images shown on the website.

SHIPPING INFORMATION
WEIGHT: 580LBS
DIMENSIONS(LxWxH): 45"x33"x46"

ENGINE

• MODEL: HONDA GX390
• TYPE: AIR COOLED, 4-STROKE OHV
• DISPLACEMENT: 389CC
• FUEL TYPE: 86 OCTANE, UP TO 10% ETHANOL
• OIL TYPE: SAE 10W30

PUMP SPECS

• MODEL: GENERAL EZ4040G
• TYPE: TRIPLEX
• PART NUMBER: 85.139.021B
• OIL TYPE: 30W NON-DETERGENT
• SOAP SYSTEM: ADJUSTABLE INJECTOR

UNLOADER

• TYPE: EXTERNAL W/36” HOSE
• PART NUMBER: AL607

BURNER

• THERMOSTAT: ON/OFF AND ADJUSTABLE
• MAX HEAT: 93°C / 200°F
• IGNITER: 12V BECKETT BURNER
• HEATING COIL: 1/2” COLD ROLLED STEEL
• COIL TUBE LENGTH: 96’ LENGTH OF TUBING
• FUEL CAPACITY: 10 GALLON
• FUEL TYPE: DIESEL

FRAME

• MATERIAL: POWDER COATED
• WHEELS: 13” FLAT FREE

UNIT SIZE

• LxWxH: 48” x 32” x 46”
• WEIGHT: 530LBS

WARRANTY

• ENGINE: 3 YEARS
• PUMP: 5 YEARS
• BURNER: 3 YEARS
• UPC: 777897292770

ACCESSORIES

• HOSE TYPE: 50' X 3/8" TWIN WIRE BRAIDED
• PART NUMBER: 85.238.251
• NOZZLES: 0°, 15°, 25°, 40° AND SOAPER
• PART NUMBER: 85.210.040H
• GUN WAND: 36" INSULATED
• PART NUMBER: 85.205.026
• FITTINGS: QUICK CONNECT
