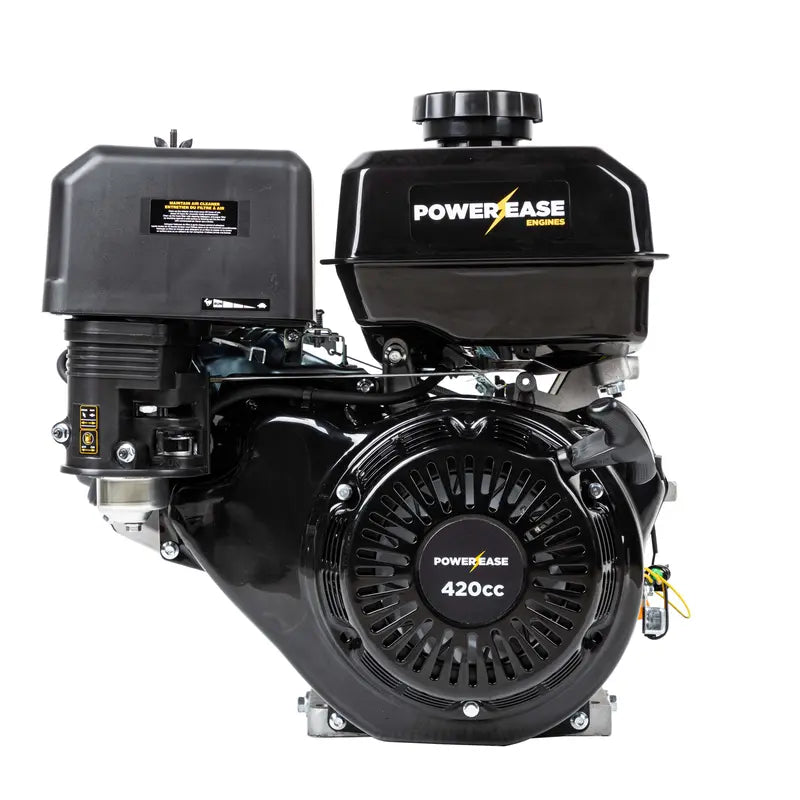

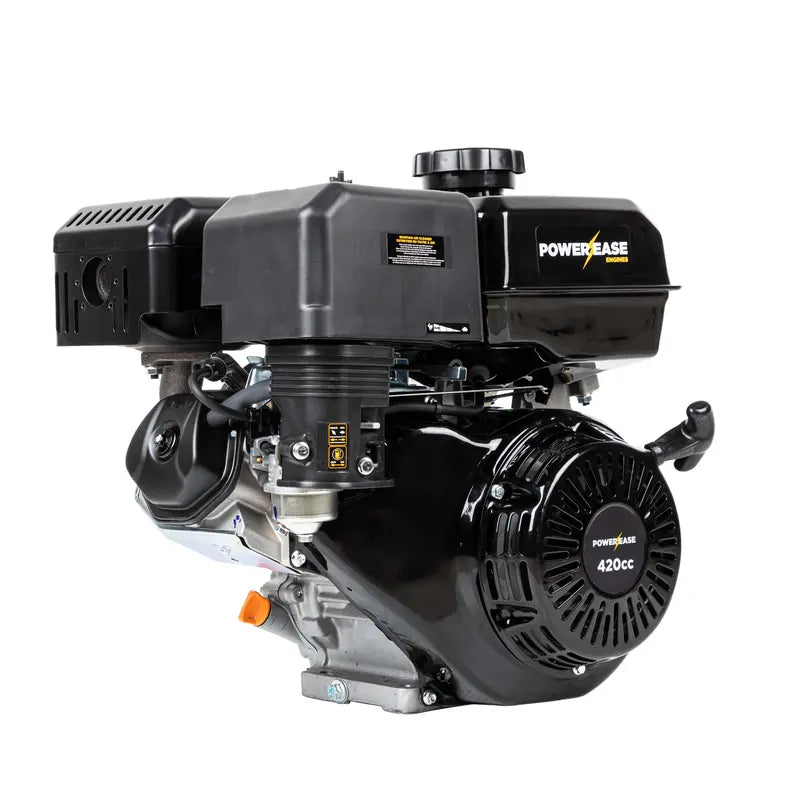

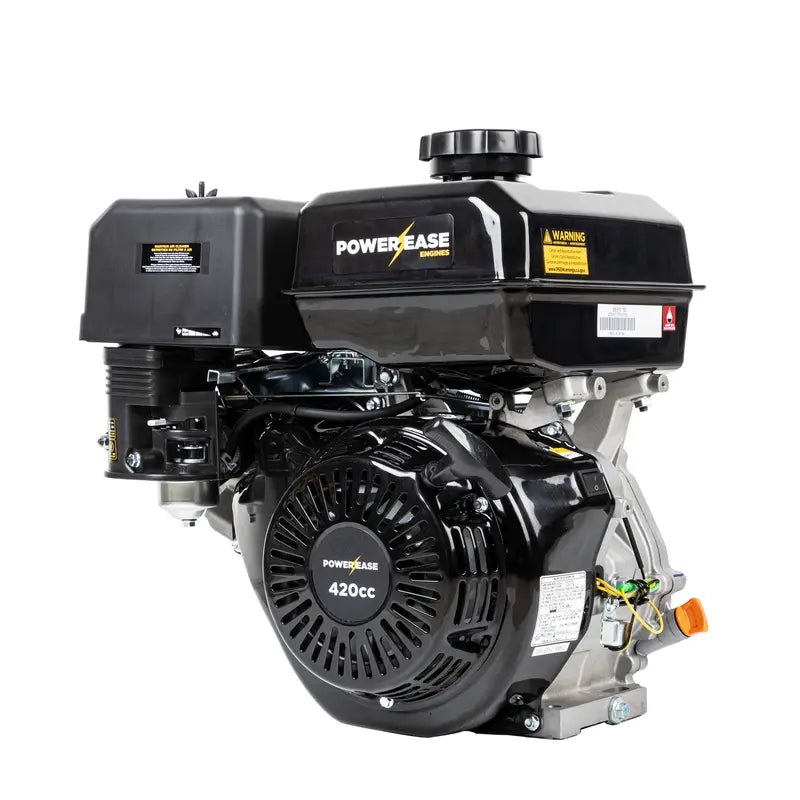

Powerease R420 Engine

Powerease engines have been used by BE Power Equipment for well over ten years and have proved themselves to be powerful and reliable. Their reputation has earned the trust to be used on a wide range of power equipment.

Replacement engine for equipment that accepts a keyed, 1” horizontal shaft.

Air cooled, 4-stroke, Over Head Valve (OHV) design enables higher compression ratio to obtain greater power output.

Designed for field maintenance with easily accessible components like the air filter, spark plug, and carburetor.

Automatic low-oil sensor will shut down the engine if the oil level drops to dangerous levels.

Fuel recommended to use is regular unleaded that is 86 octane or more. It is best to use fuel with no ethanol, but ethanol blends of up to 10% is acceptable.

Common applications include: Pressure washers, generators, water pumps, air compressors, lawn and garden equipment, tillers, and construction equipment.

The actual product may vary from the images shown on the website.

SHIPPING INFORMATION
WEIGHT: 77 LBS
DIMENSIONS (LxWxH): 20"x17"x20"

ENGINE SPECS

• MODEL: POWEREASE R420
• CYLINDERS: SINGLE
• COOLING: AIR COOLED
• TYPE: 4-STROKE OHV
• DISPLACEMENT: 420CC
• NET POWER: 13 HP @ 3,600 RPM
• NET TORQUE: 29 N·M @ 2,500 RPM
• COMPRESSION RATIO: 8.5:1
• START SYSTEM: RECOIL
• SHAFT TYPE: KEYED 1" HORIZONTAL
• SHAFT ROTATION: COUNTER CLOCKWISE

FUEL AND OIL SPECS

• FUEL TYPE: UNLEADED GASOLINE
• MIN OCTANE: 86
• MAX ETHANOL: 10%
• FUEL TANK CAPACITY: 6.0 L / 1.6 US GAL
• OIL TYPE: SAE 10W30
• OIL CAPACITY: 1.1 L / 1.16 US QTS
• LUBRICATION: FORCED SPLASH

WARRANTY

• BASIC: 2 YEARS
• REGISTERED: 5 YEARS
• UPC: 777897146370
